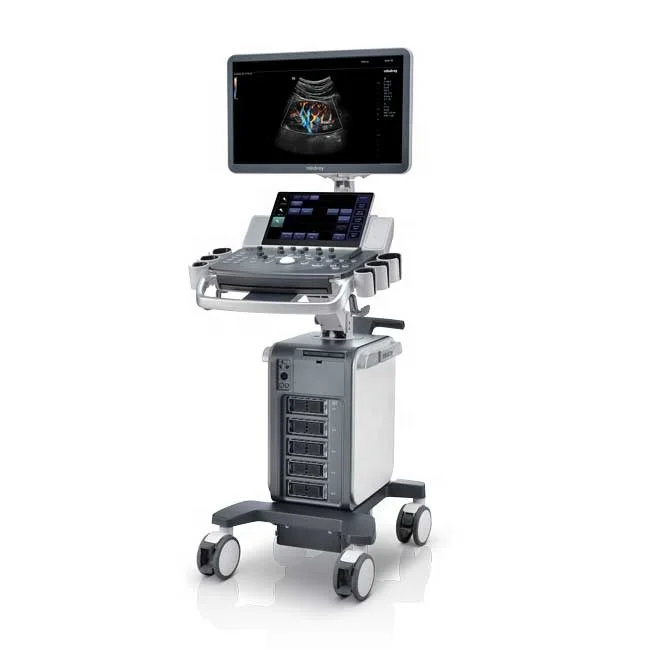

Mindray DC-90vet Ultrasound System
|
||||
|
Key Featrues
|
21.5-inch high resolution LED Monitor
|
|||
|
Innovative dual-wing floating arm
|
||||
|
Standard 5 active transducer sockets
|
||||
|
Touch Screen (13.3 inch, ultra-slim, angle adjustable, touch gestures supported)
|
||||
|
B/M/Color/Color M/Power/Directional Power Doppler Flow Imaging/PW
|
||||
|
Raw Data
|
||||
|
128G SSD & 1TB Hard Disk, DVD-RW, HDMI Output and USB 3.0 Ports
|
||||
|
Transducers
|
Convex C5-1E, 1.3-5.7MHz, 60mm, 128 elements
|
|||
|
Convex C11-3E, 2.6-12.8MHz, RAD. Curvature of 15 millimeters, 128 elements;
|
||||
|
Linear array L12-3E, 3.0-13.5MHz, 38mm, 192 elements, FOV: 38.1 mm
|
||||
|
Single crystal probe SP5-1E, 1-5MHz, 23.4mm, 80 elements
|
||||
|
Phased array P7-3E, 2.3-7.2MHz, 20.4mm, FOV: 90°
|
||||
|
Phased array P10-4E, 3.0-11.4MHz, 15mm, 128 elements, FOV: 90°
|
||||
