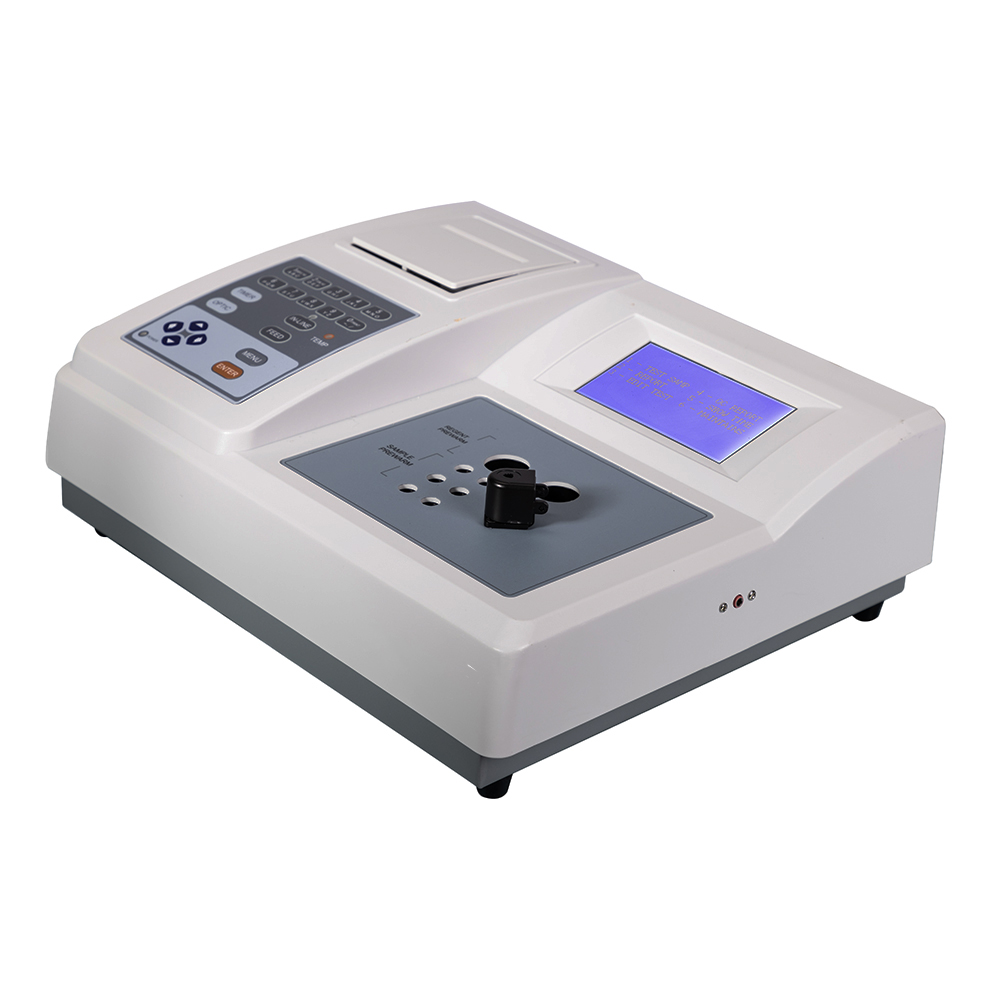

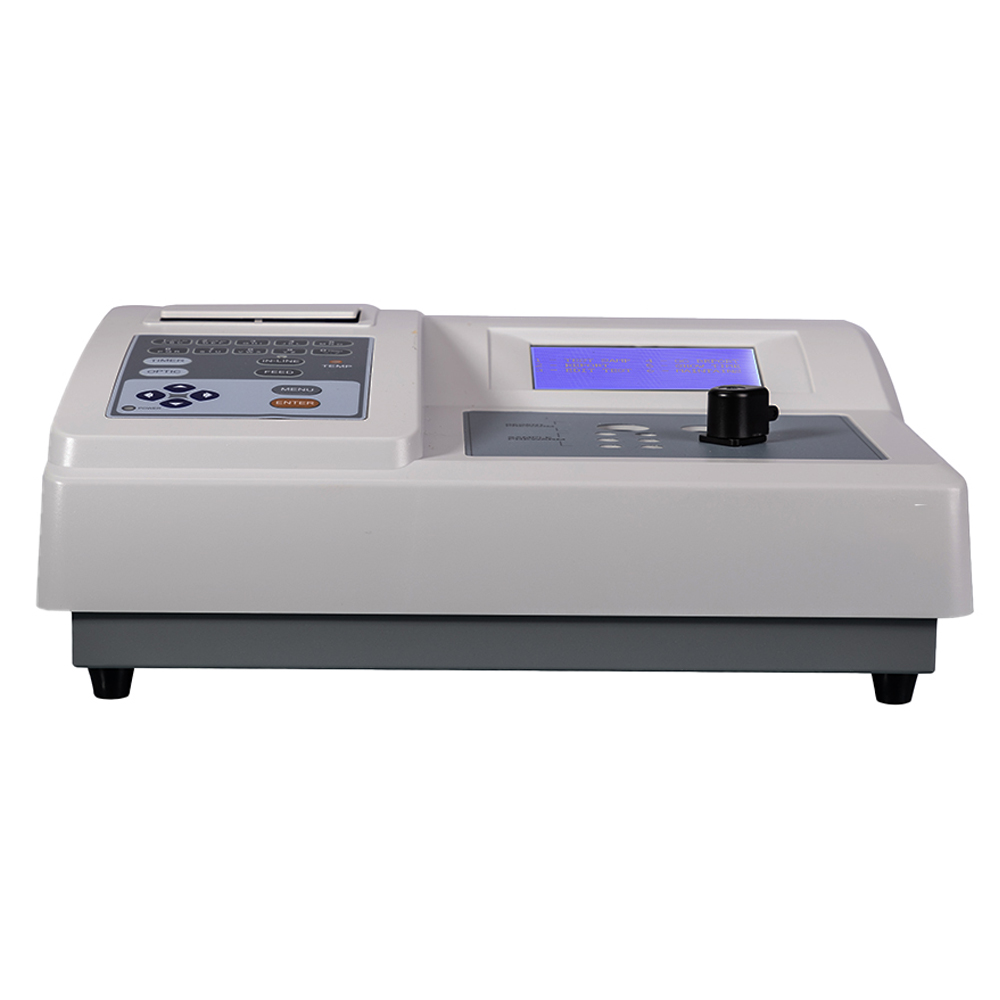

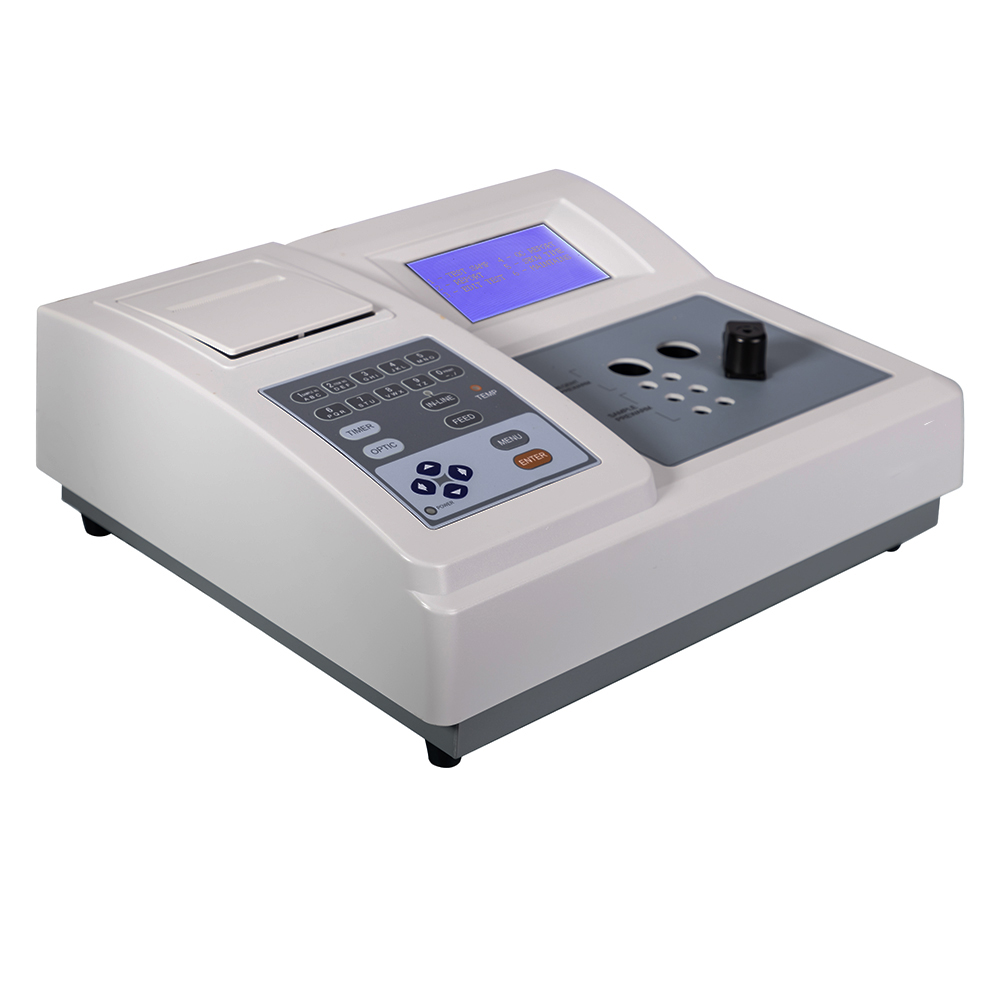

BX5001 Coagulation Analyzer

Feature:

● Advanced scattered light principle and percentage analysis ensure accurate results.
● Low reagent consumption less than 20uL, open reagent.
● Special testing cup location system, adding sample bracket
● Optional PT Derived method for testing fibrinogen, decease the dosage of reagent
● Advanced optical light matching system ensure precision result.
● 240* 128 large LCD display.
● Memory for 10.000 testing result
● Internal thermal-sensitive printer
● Electronically-linked pipette optional.
● Perform all routine tests such as PT. APTT. TT Fibrinogen and clotting factors
● RS232 interface, PC connecting for management software


Specification:

Testing channels: 1 channel
Sample pre-warming position: 6 positions
reagent pre-warming position:  2positions
Software timer:  1
Test wavelength:  470nm
Sample consume:  20uL-40ul
Reagent consume:  20uL-40uL
Temp control precision: 37±0.3℃
Repeatability:  Cv < 2%
Coincidence indicator:  ≤3%
Momery:  10000 test result
Notation of Result:  S, %, PTR, INR, g/L
Operation language: English
Power supply:  220VAC±15% 50-60Hz
Dimensions: 370mm(L)×370mm(W)×120mm(H)
Temperature:  15℃-30℃ wet≤90%
Weight:  8Kg
