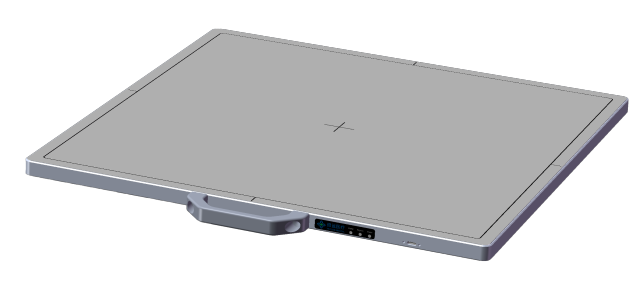

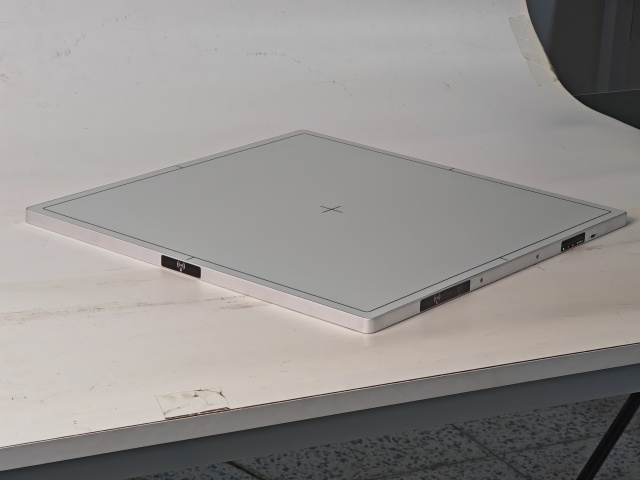

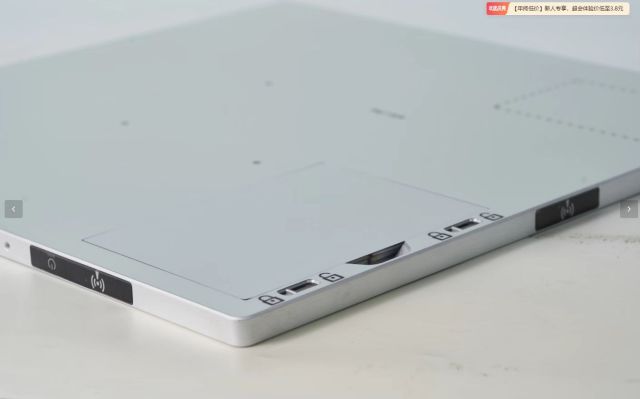

BX4343SC Medical Static Flat Panel Detector

• 43 × 43 cm² imaging area
• High spatial resolution with 140 μm pixel size and 16-bit ADC
• Radiation tolerance from 40 kV to 160 kV
• Full screen AED control
• Wireless WiFi transmission, powered by built-in battery

BX4343SW is a new generation 43X43(cm)highperformancereal-time imaging flat panel detector, employing innovativelow-noise TFT sensor technology. With a pixel size of 140um and 16-bit readout electronic devices. This detector isdesigned according to medical standards, being sturdy anddurable,wide environmental adaptability,and highreliability. Full-screen AED control, not limited by the beamsource. Data is transmitted via Gigabit Ethernet. The SDKsoftware development package provided by Bomedix supports the Windows operating system, facilitating you to configureparameters, calibrate, collect images, and view images forthe detector, BX4343SW is suitable for human medical andpet detection applications.
