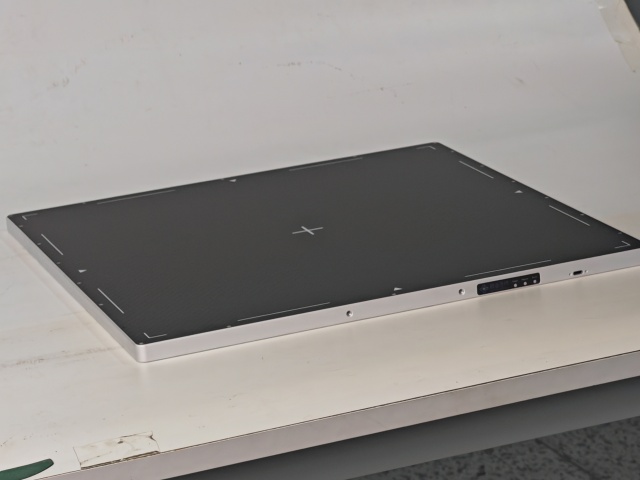

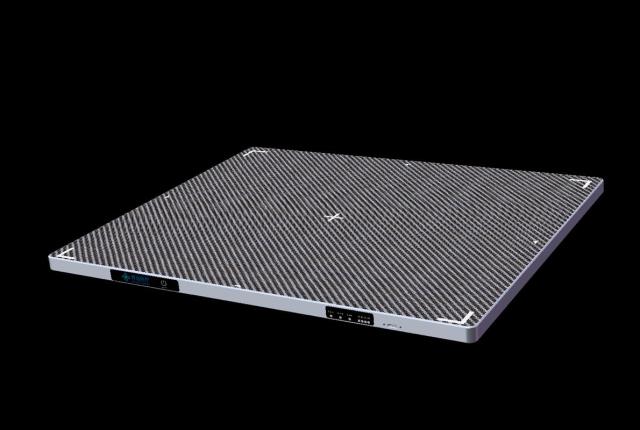

Medical Static Flat Panel Detector

• 43 × 35.8 cm 2 imaging area
• High spatial resolution with 140 μm pixel size and 16-bit ADC
• Radiation tolerance from 40 kV to 160 kV
• Full screen AED control
• Wireless WiFi transmission, powered by removable battery
• Innovative TypeC multi-usage connector

BX4335SW is a new generation 43X35(cm) high-performance real-time imaging flat panel detector, employing innovative low-noise TFT sensor technology. With a pixel size of 140μm and 16-bit readout electronic devices. This detector is designed according to medical standards, being sturdy and durable, with high radiation resistance, wide environmental adaptability, and high reliability. Full-screen AED control, not limited by the beam source. Data is transmitted via WiFi, and can be powered by the built-in battery for fully wireless use. The SDK software development package provided by Bomedix supports the Windows operating system, facilitating you to configure parameters, calibrate, collect images, and view images for the detector. BX4335SW is suitable for human medical and pet detection applications.
