Main parts
|
Specifications
|
|

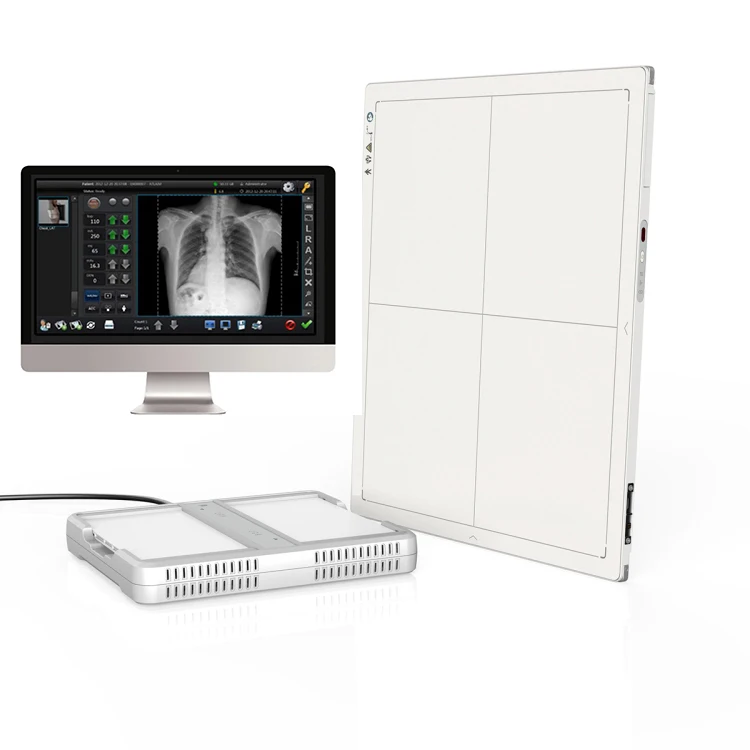

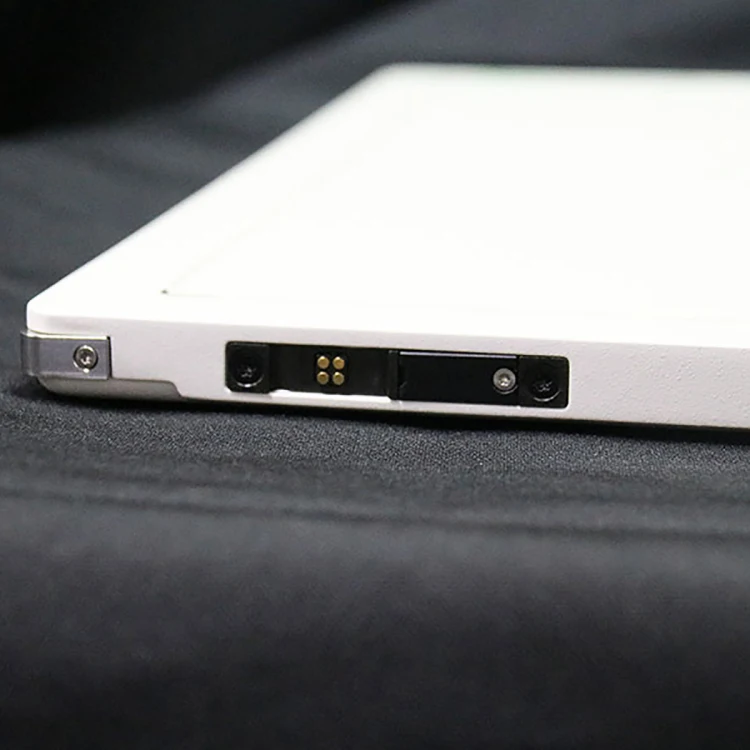

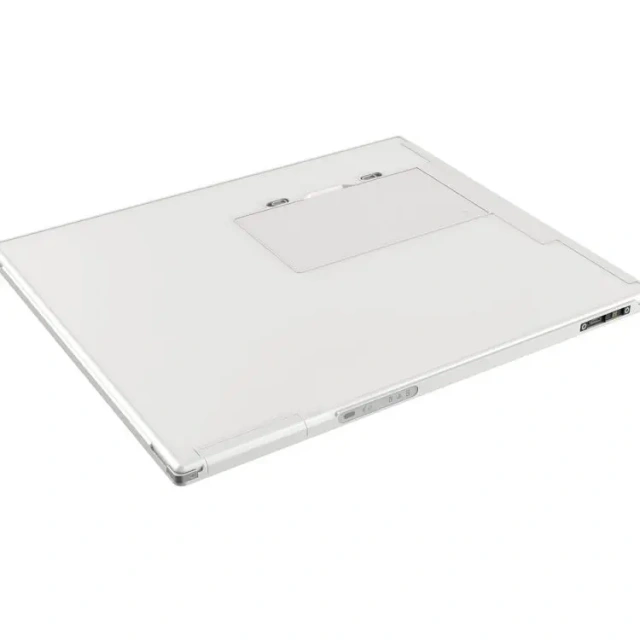

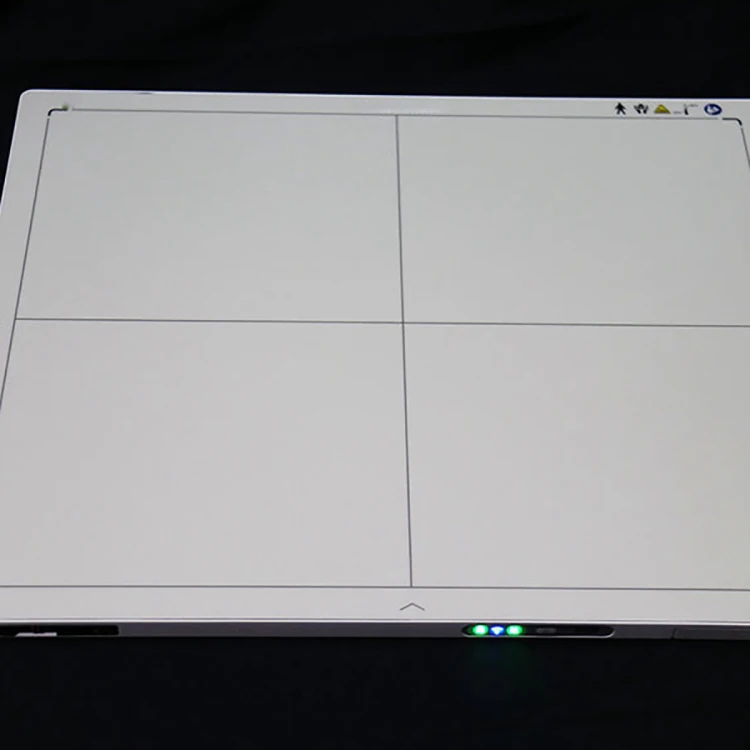

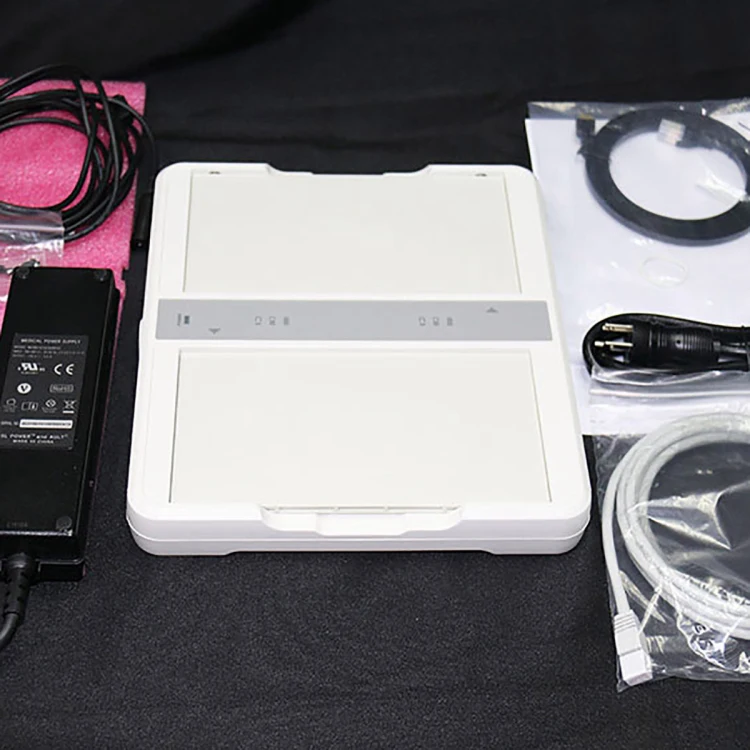

Mobile Flat Panel Detector
|
1.1 Scintillator: CsI or GdOS；
|
|
1.2 Image size：17×17 inch；
|
|
|
1.3 Pixels：3072(H)*3072(V)；
|
|
|
1.4 Dimensions:460*460*16mm
|
|
|
1.5 Pixel Pitch：140µm；
|
|
|
1.6 Spatial Resolution：3.7Lp/mm；
|
|
|
DICOM DR workstaton
|
Software: Staray 4.4.0
|
|
Patient Management:
Worklist Query Add and Edit Patient in the local Urgent Patient A variety of conditions integrated query Quick query of patient information Burn dicom image disc, attach image viewer |
|
|
Image Reception
Select bodypart in text or graphics mode Set exposure conditions of generator Can select different body size AEC Control Focus Control Generator state display Support a variety of synchronous methods of generator and detector |
|
|
Image Processing
Image preprocessing Image postprocessing Add text annotation Image rotation and flipping Manual or automatic image cropping Image contrast and brightness adjustment Image dicom archive |
|
|

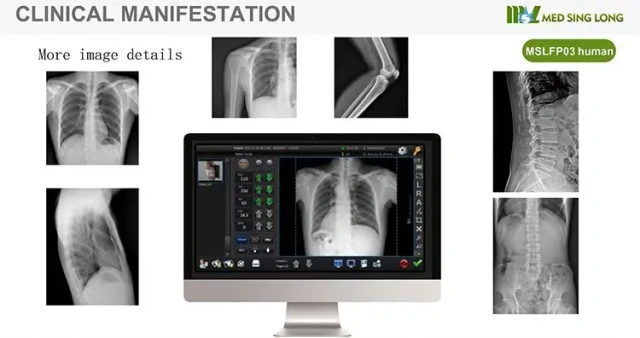

Image Display
W/L adjustment Image Zoom in/out Image Pan Image rotation and flipping Image invert display Arrow markup Line distance measurement Angle Measurement Rectangle, ellipse, polygon Measurement Magnifier tool Multi-Window Display Settings |
